Product benefits:
Lift toilet Care Plus

  • Capable of being integrated into every bathroom and sanitary facility.
  • Suitable for almost any wall-mounted toilet with / without bidet
  • Electrically variable height adjustment (range: 350 mm) even under load
  • Angel of inclination between -2 to +10 degrees
  • Comfortable stand up support
  • Accessible, ergonomical and movable handles
  • Control via wall switch
  • Additional remote control available
  • Additional infrared sensor for automatic flushing available
  • Additional trigger for flush and alert
  • “Invisible” through flush-mounted construction
  • Safe low voltage 24 V technology
  • Easy cleaning and maintenance

generalspecificationscomposition alternativesdownloadrequest

Lift toilet CarePlus

Electric adjustable in height and inclination with movable handles

Lift Toilette CarePlus - höhen- und neigungsverstellbar sowie barrierefrei

Lift Toilette CarePlus - technische Daten

Fields of application of the lift toilet Care Plus

The lift toilet Care Plus is an extension of our toilet lift model Care. Beside the infinitely variable height adjustment and accessibility the model Care Plus can be angulated between -2 to +10 degrees.

Suitable for:

  • Persons with difficulties in using a standard toilet
  • Persons with limited mobility
  • Disabled persons

Fields of application:

  • Toilet lift adjustable in height (range: 350 mm)
  • Additional adjustment of inclination
  • Accessible use of the toilet supported by movable handles
  • Comfortable stand up support


Control of the lift Toilet Care Plus:

The lift Toilet Care Plus can be electrically adjusted in height, in a range of 400 mm to 750 mm, as well as in inclination (up to 12 degree).

Control options:

  • Wall switch
  • handle integrated control keyboard
  • if desired push buttons for flushing and alarm
  • additional remote control is available
  • optional infrared sensor (integrated in wall switch for automatic flush)


Design & integration:

The lift Toilet Care Plus can be installed easily in any sanitary facilities:

  • Flush-mounting
  • Suitable for standard toilets as well as washlets and bidets
  • High-quality materials for an elegant, timeless look
  • Easy maintenance and cleaning due to user-friendly, smooth surfaces

Flush mounting – Lift toilet CarePlus

Lift Toilette CarePlus - UnterputzrahmenLift Toilette CarePlus - technische Daten

Flush-mounting frame consisting of:

  • galvanized steel profiles
  • integrated in-wall cistern UP 320 Geberit
  • Flush plate (Color: White)
  • Drain set
  • Electric unit
  • Plastic cover (Color: White)
  • Wall switch for height adjustment
  • Multifunctional movable handles
  • Handle integrated controls (up, down, optional flushing and alarm)
Technical specifications:

  • Dimensions: 1470 x 608 mm
  • Height adjustment: 400-750 mmAngle of inclination: -2 to +10 degrees
  • Angle of inclination: -2 to +10 degrees
  • Drain DN100
  • Power supply 230V / 50Hz 16A
  • Water connection G 1/2 “
  • Angle valves 10/ G 3/8″
  • Drive control 24V DC

Configuration Options for lift toilet Care Plus

The lift toilet Care Plus can be configured as desired. For the flush-mounted element, you can choose between different handles, controls, seats and toilet bowls.

Lift Toilette CarePlus Unterputzkonstruktion

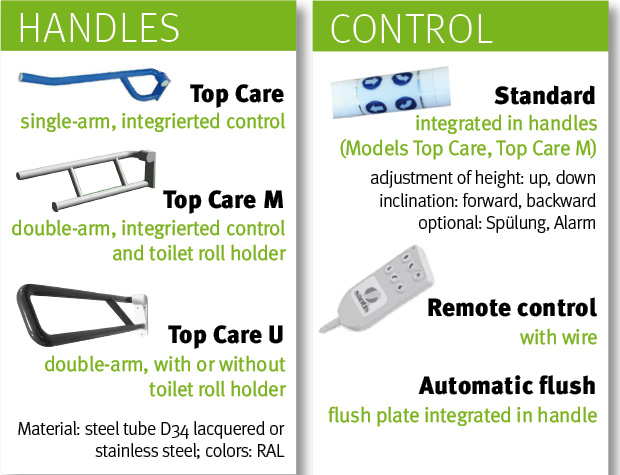

Handles and Control

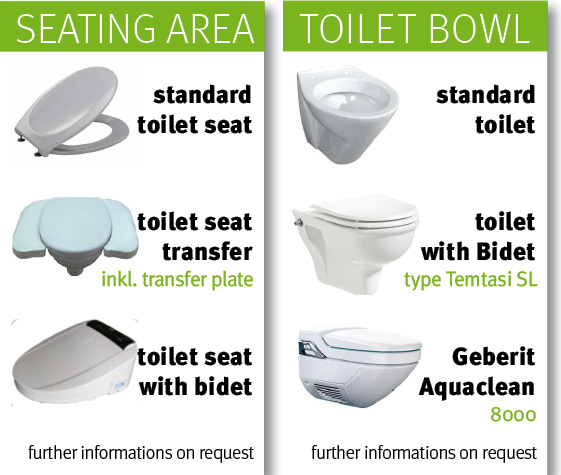

Seating and toilet bowl

Just send us an inquiry using our application form and we would gladly put together an individualized offer for your toilet lift.

Download section – Lift toilet CarePlus

Brochures, instruction sheets, operating manuals, texts for invitation to tender – to download

To install Acrobat Reader please click here

Dimension Sheet Lift-toilet CarePlus

Configuration Sheet_Care_CarePlus

Assembly_instruction_LWC_CarePlus

Wall preparation-Lift toilet_Santis_Forall and Care

User Manual_Lift-toilet Forall_CARE_CarePlus
