Lift Toilet STV

Cost saving toilet unit that is electrically adjustable in height with an optional 12° inclination

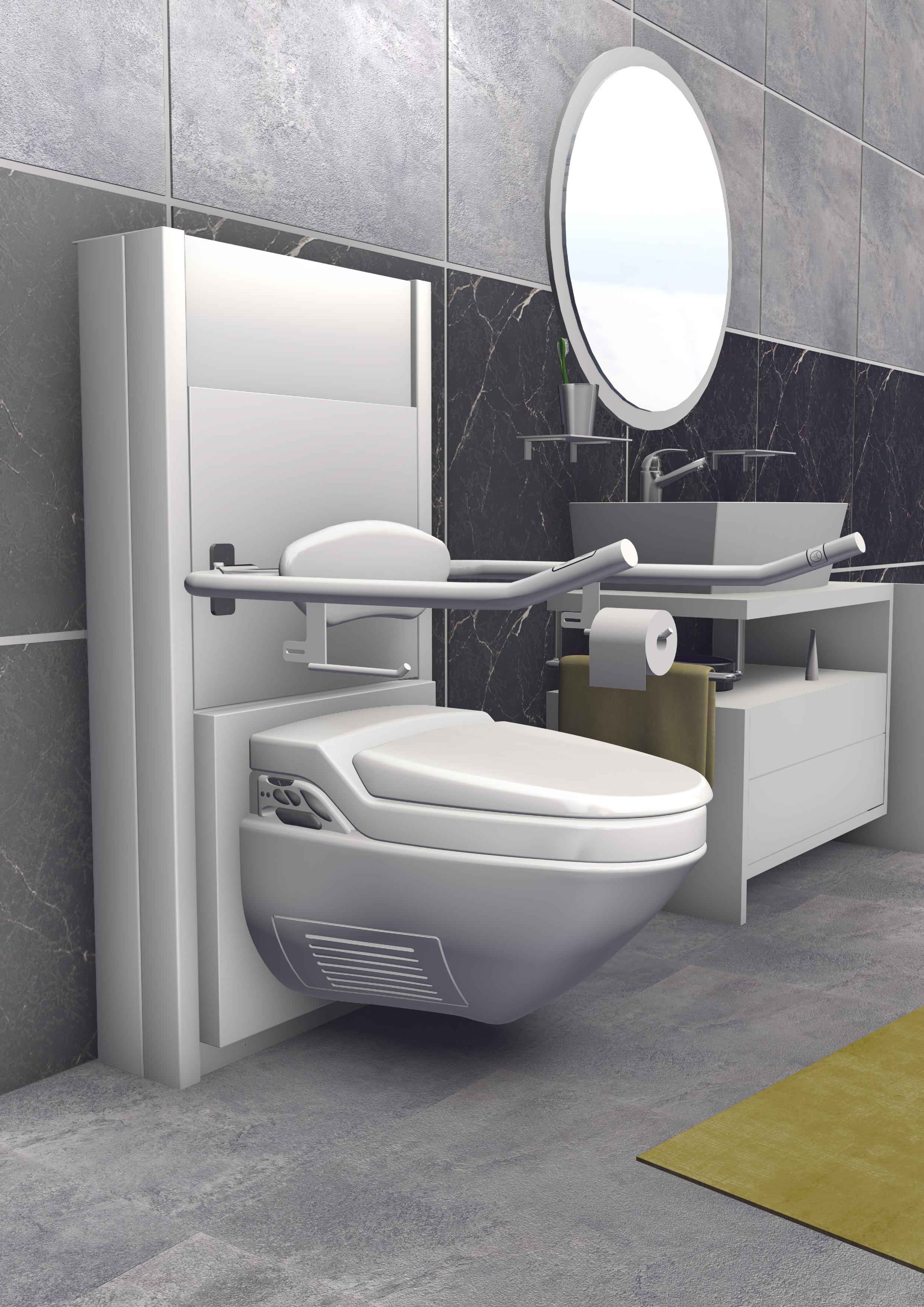

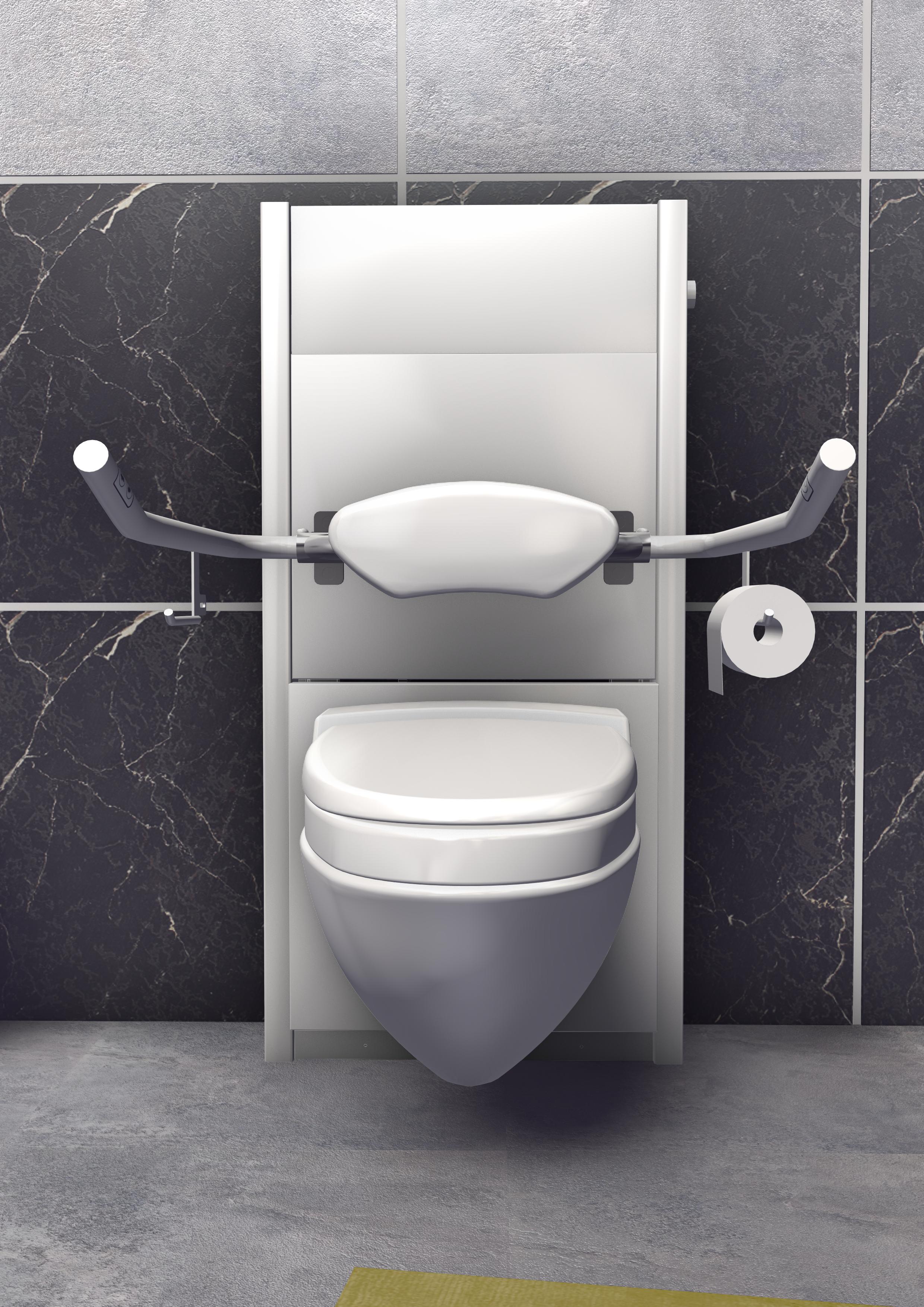

Lift Toilette STV100Lift Toilette STV100 - Frontansicht





















Application of the Lift Toilet STV

The wall-mounted Lift Toilet STV can be retrofitted in any existing toilet. It offers a continuously variable adjustment of height as well as accessibility through its two foldable and spring loaded handles. The optional 12° inclination offers additional safety and eases the use of the toilet. The lift toilet can be connected trough ground source or wall socket. While using a efficient feed pump one can adapt the lift toilet STV  independently from any drain to all spatial conditions.


The Lift Toilet STV can be differed in following product variants:

Differantiation trough drain:

  • STV100 – ground source: adjustment of height up to 200 mm
  • STV200 – wall socket (rear drain): adjustment of height up to 350 mm

Differantiation trough wash-up system:

  • mechanical (pneumatic)
  • electric
  • combined

Differantiation trough handle bar (Care, Top Care M, Top Care U):

All handle bar variations of the lift toilet STV100 and STV200 are folding upwards, spring-loaded and adjustable in any optional position.
Further following extras are offered:

  • integrated controls (optional height,  bias, flush, alert)
  • remote attachment
  • toilet tissue attachment
  • back rest

Options for controls:

  • integrated in handle bar
  • regulation trough remote control
  • combined controls

Entwicklung:
Lift toilet STV – development in 5 EU countries

The STV Lift Toilet is developed from 11 institutions in 5 European countries.

Lift Toilette STV – technical characteristics

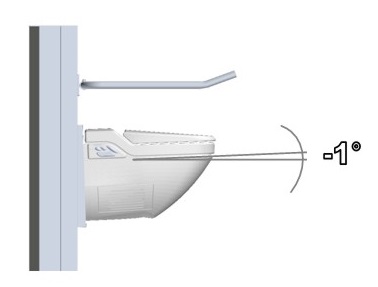

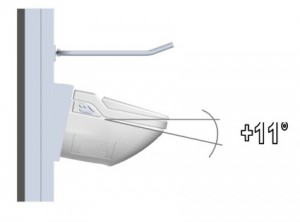

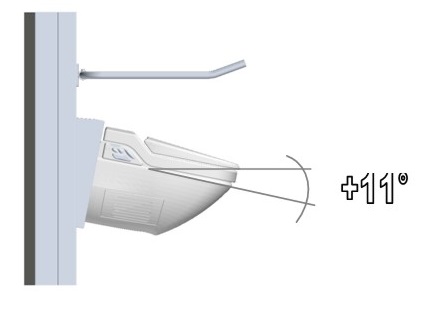

Inclination

Neigungswinkel STV100Neigungswinkel STV100

       specifications STV 100

  • dimensions: 1200 x 582 mm
  • adjustment of height: 400 – 600 mm
  • handle bar length: ca. 725 mm
  • water runoff: DN100, ground source

specifications STV 200

  • dimensions: 1350 x 582 mm
  • adjustment of height: 400 – 750 mm
  • handle bar length: ca. 735 mm

common specifications STV

  • adjustment oft height: linear, even on-load
  • inclination: linear -1° up to +11°
  • connection for power supply: 230V/50Hz 16A
  • water supply: 1/2″ or  3/8″
  • flush: Geberit Pneumatik Typ AP 123
  • drive control: 24V DC
  • 2 spring loaded and foldable handle bars
  • handle bar integrated controls
  • handle bar caliber: 32 mm
  • load: 150 kg; decisive is the allegation of the toilet bowl
  • other: primed connection (water, power) for bidet
        composition

  • galvanized steel profiles
  • side profiles available in RAL colors
  • Plastic cover (Color: White)
  • Multifunctional movable and spring-loaded handles
  • Integrated cistern unit
  • Integrated drain set
  • Electric unit
  • wall-mounted toilet

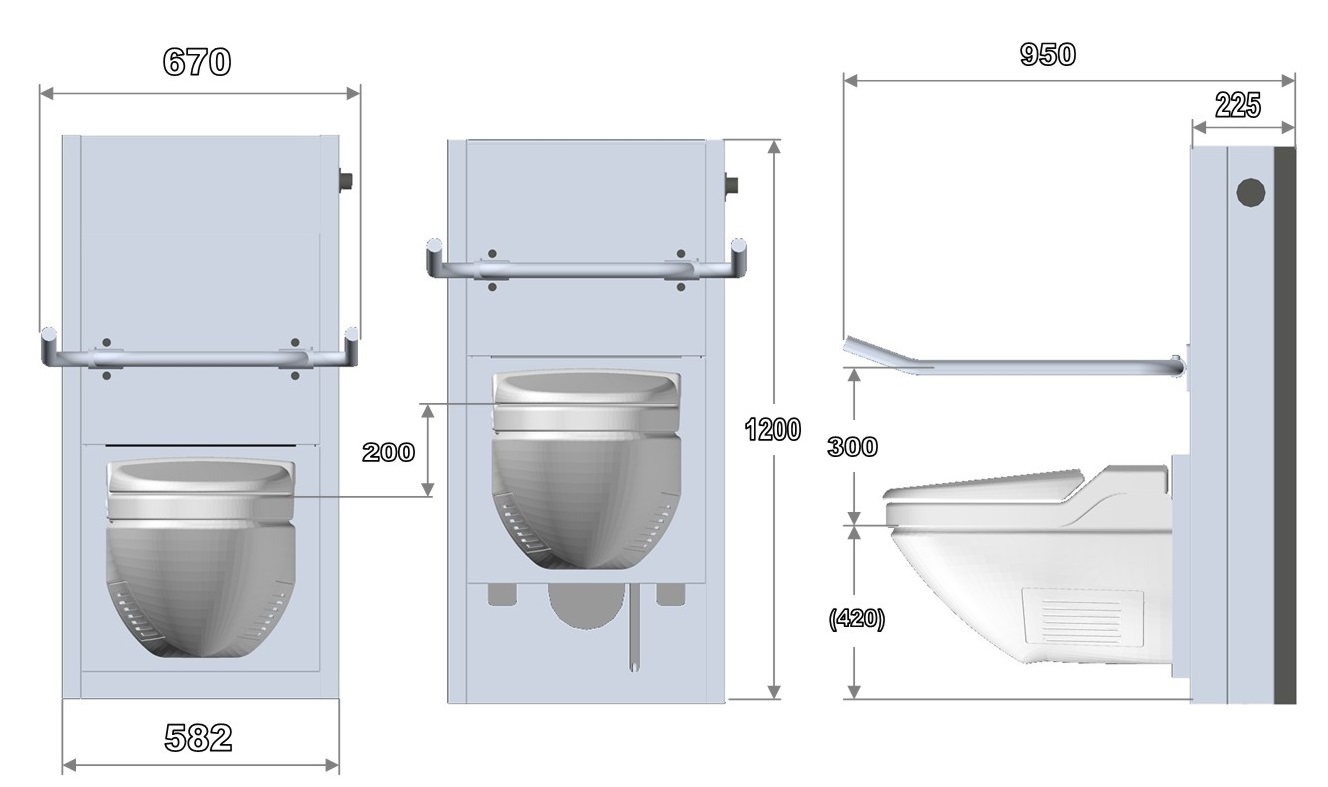

Lift Toilet STV100 – dimensions & height adjustment

STV100 - Maßangaben

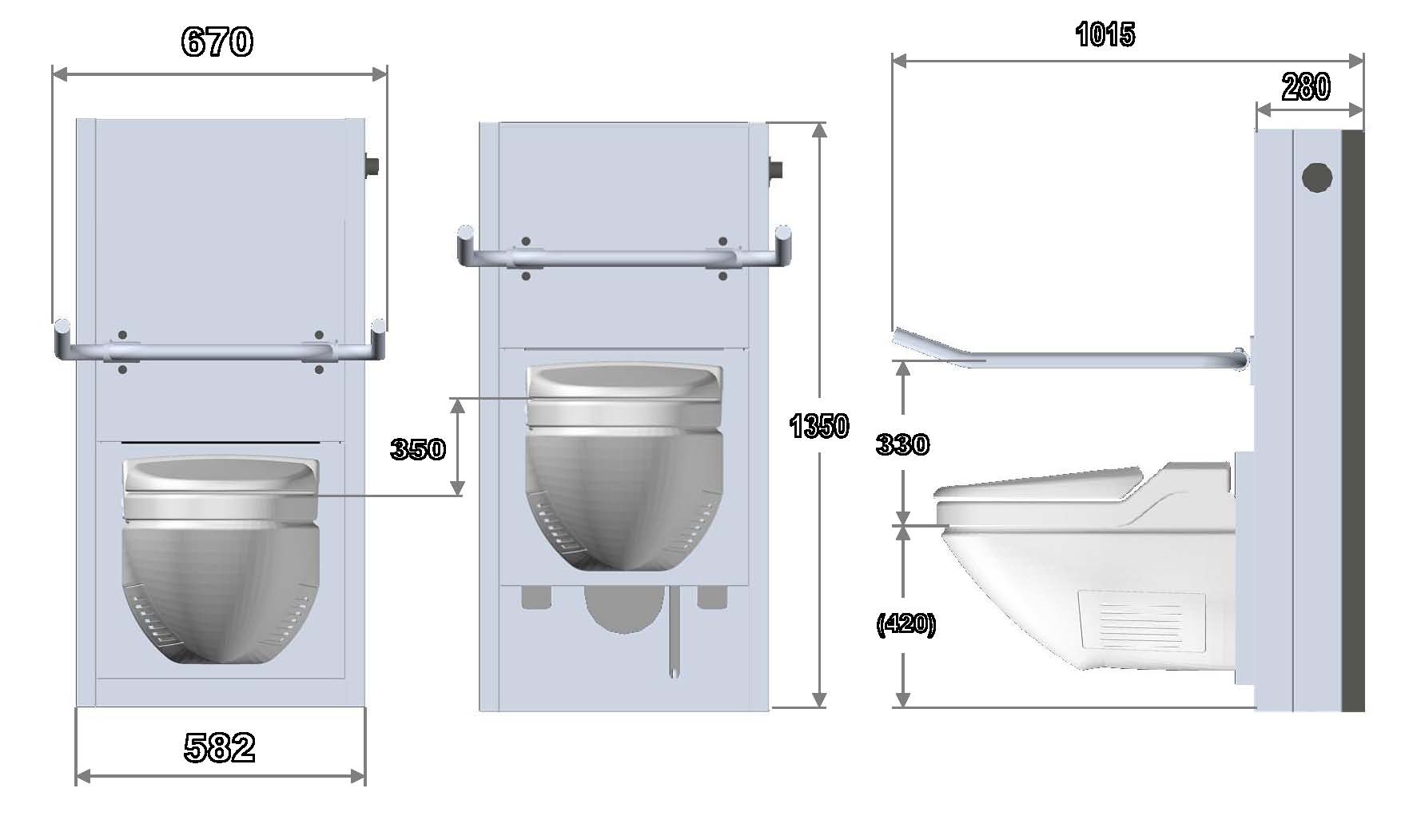

Lift Toilet STV200 – dimensions & height adjustment

STV-200_Maßblatt

Configuration Options for lift toilet STV

The lift toilet STV can be configured as desired. You can choose between different handles, controls, seats and toilet bowls.

To arrange your lift toilet STV you have the possibility to design the front plate in divers wood variations, such as maple, beech, oak, cherry, basswood or mahogany. Don’t hesitate to ask us!

Zur flexiblen Installation der Aufputz-Toilletteneinheit kann das Lift WC STV zudem mit einer leistungsfähigen Sanitop Förderpumpe ausgestattet und somit unabhängig von vorhandenen Abflüssen installiert werden.

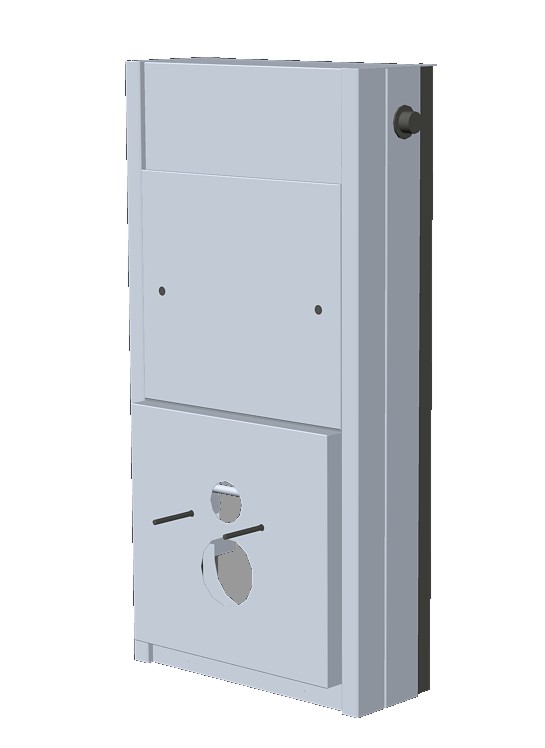

Aufputzmodell STV100Lift Toilette Silver Care - Aufbaualternativen für Griffe und Steuerung

Lift Toilette Silver Care - Aufbaualternativen für Sitzfläche und Toiletten-Schüssel

Please send us your request and we are pleased to offer you a proposal for your personal Lift Toilet STV without obligation.
Lift Toilette Silver Care - flexible Installation über Sanitop Förderpumpe

STV100 - verschiedene Holzfronten

Download – informations sheets for the Lift Toilet STV

Prospects, instruction sheets, text for invitation to tender

To install Acrobat Reader please klick here

STV100_Wandvorbereitung

STV100_Ausschreibungstext



Interest in our Lift Toilet STV?

Please send ous your personal request per E-Mail. We are pleased to offer you an offer without obligation for the Lift Toilet STV100 or STV 200. You can contact us directly via phone as well – we are glad to provide advice!
