PRODUKTVORTEILE
Aufstehhilfe BC70

• vereinfachte Modellvariante zu R2D2
• 2 Grundhöhen
• perfektes Preis-Leistungs-Verhältnis
• für Wand- und Standtoiletten
• über TR-Modul Wechsel zwischen Neigungswinkel und waagerechter Hebewirkung
• Entlastung für Angehörige und/oder Pflegepersonal
• stufenlose elektronische Höhen-Neigungsverstellung
• barrierefreie fixe Stütz-Klapp-Griffe
• Bedienung über Fernsteuerung
• Ausführung mit/ohne Bidet
• kein Montageaufwand, modularer Aufbau
• geringer Platzbedarf
• einfache Reinigung und Pflege
• gemäß §40ABS, 4 SGB XI über die Pflegekasse finanzierbar

[:en]

PRODUCT ADVANTAGES
Stand-Up Support BC70

• Simplified model to R2D2
• 2 basic heights
• excellent price-performance ratio
• For wall or stand toilets
• Relief for families and / or nursing staff
• infinitely variable electronic height and inclination adjustment
• Accessible fixed handles
• Operation via remote control
• Version with / without bidet
• no installation effort, modular design, small footprint
• easy cleaning and maintenance

[:]

[tabs style=”1″][tab title=”information”]

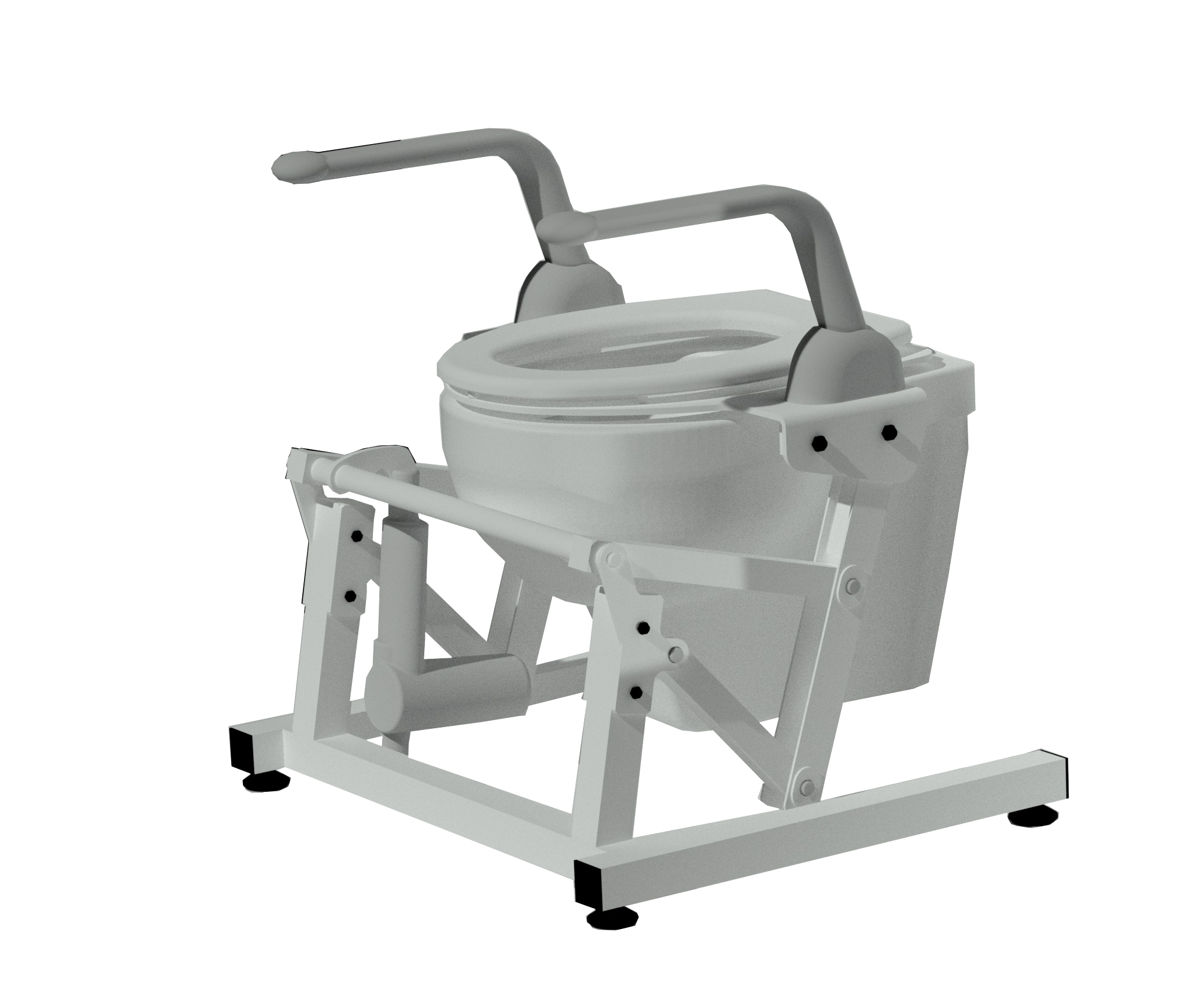

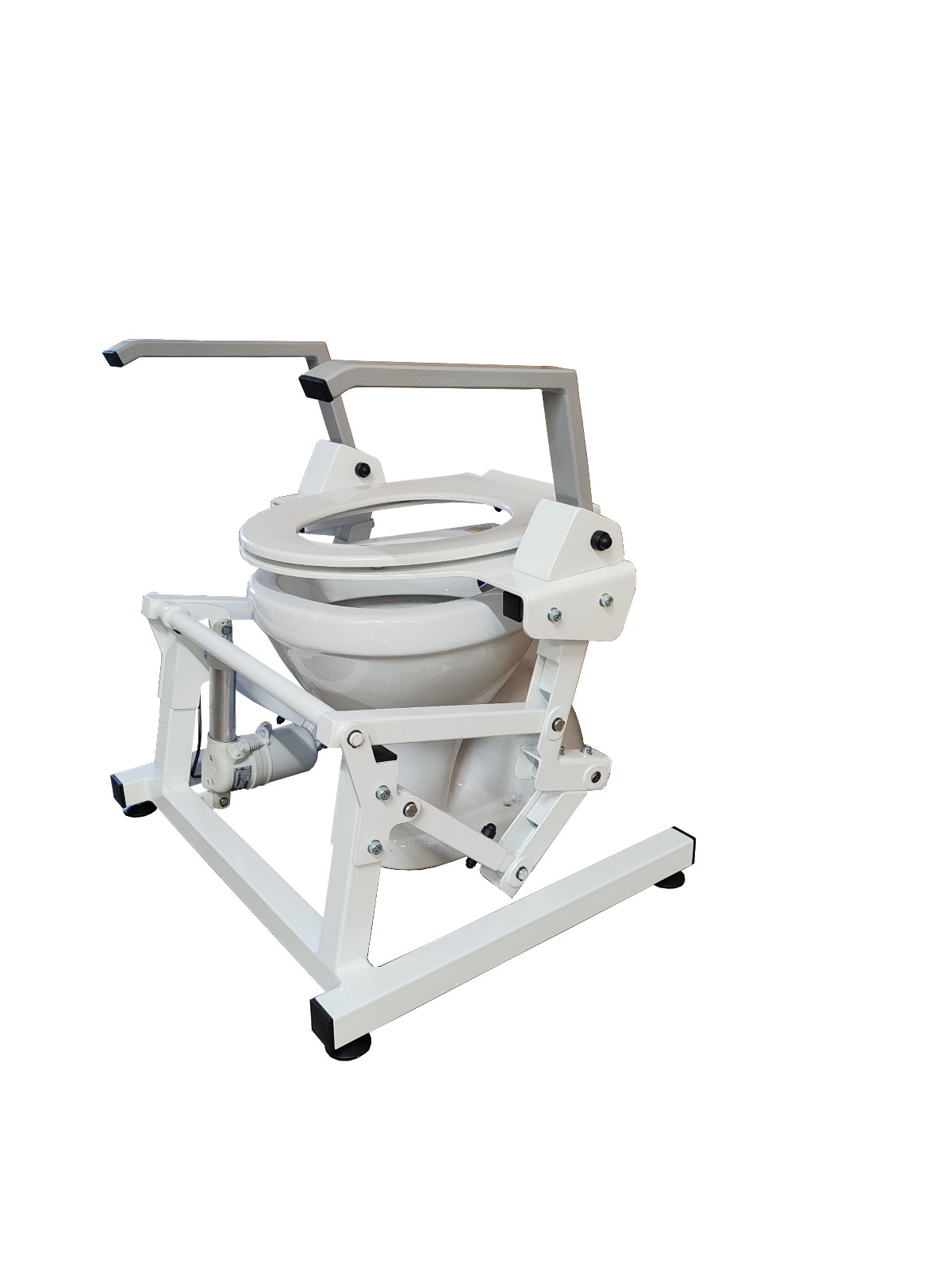

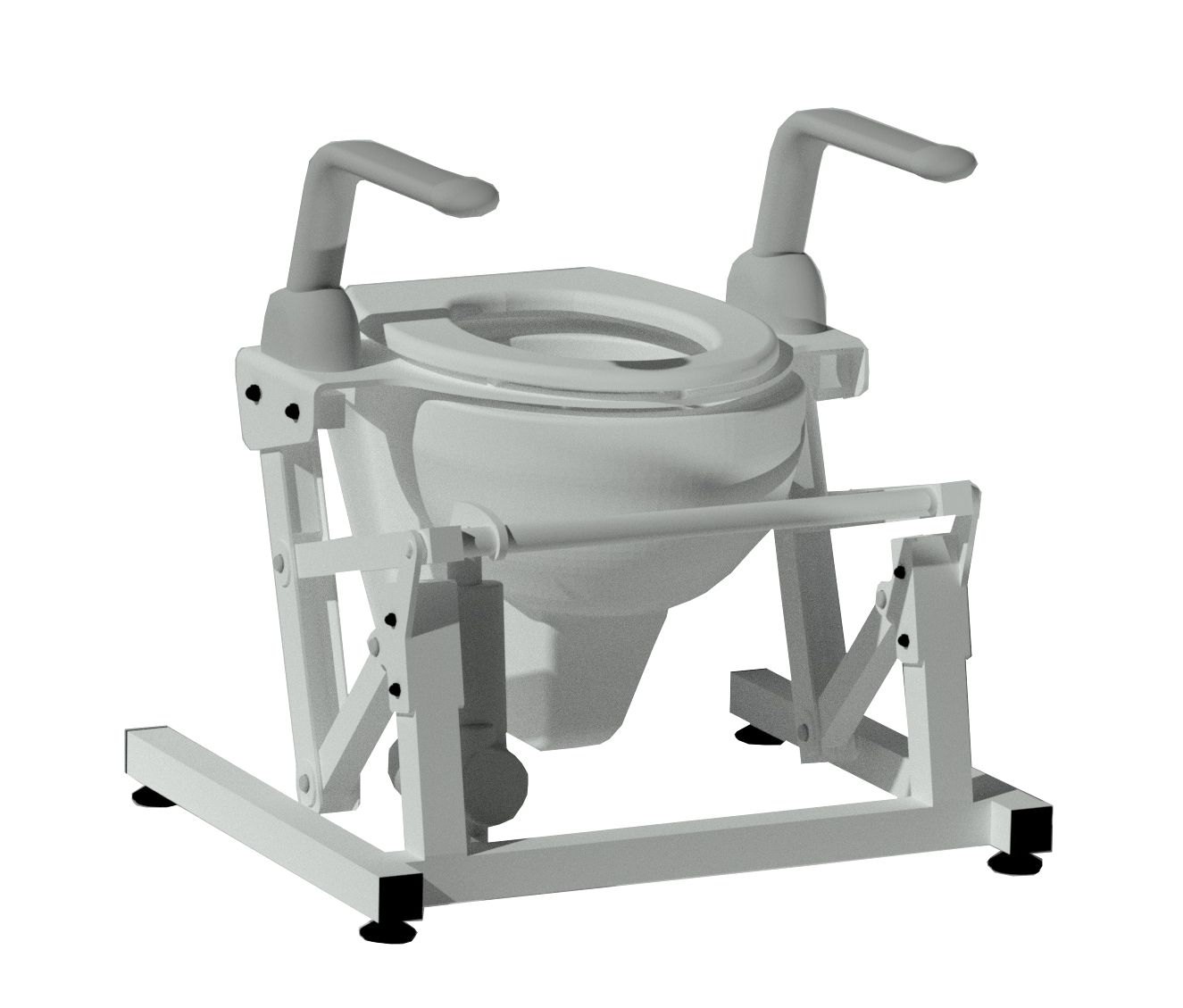

Stand-Up Support BC70

The simplified version to the R2D2 device

The ideal basic model for a sitting and standing aid for independent toilet use. The BC70 provides a lifting action with a tilt angle. With the BC70-TR model, you can even switch between a lifting action with and without a tilt angle (e.g., for wheelchair users).

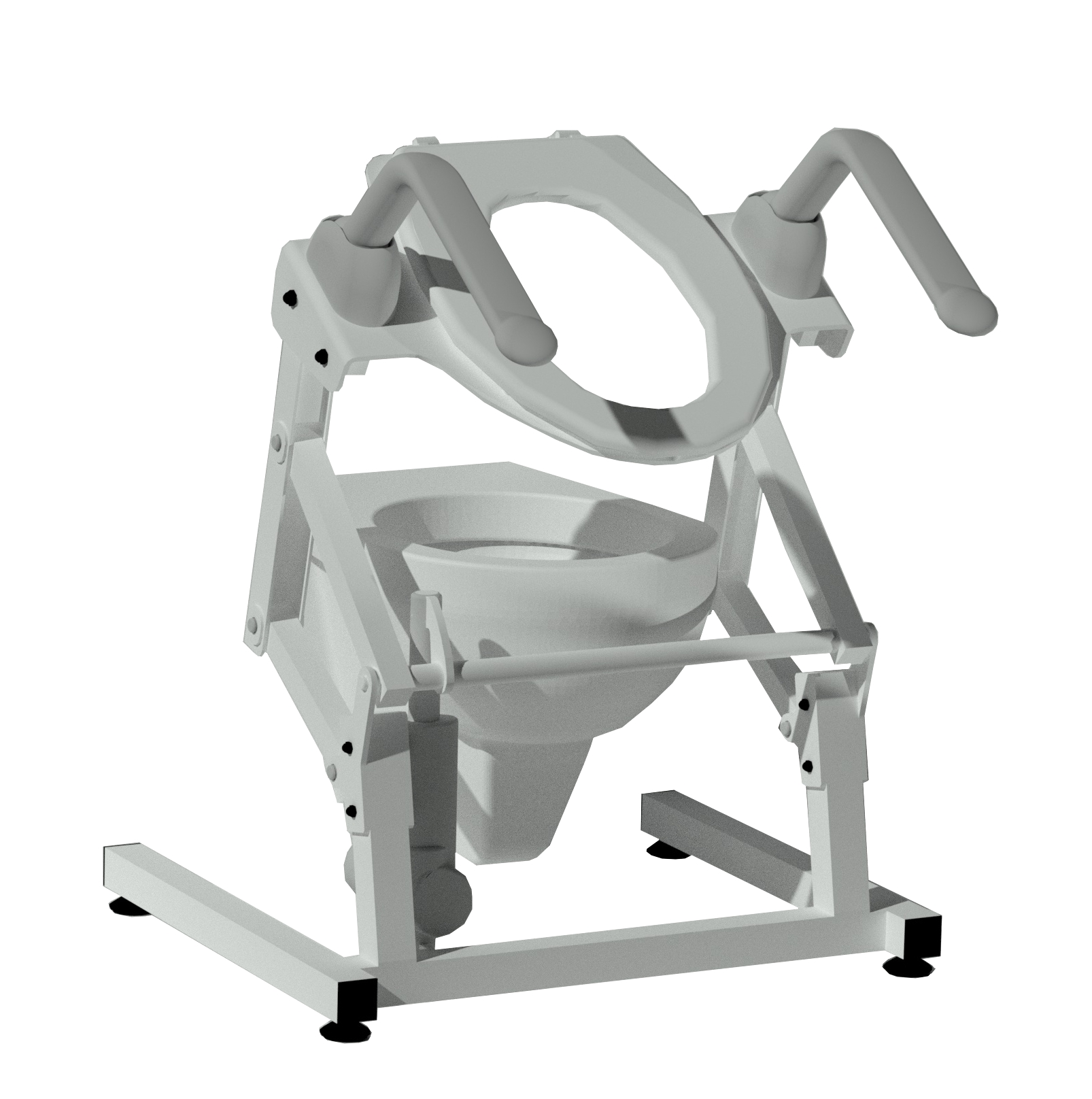

Bewegungsablauf

Alternative with excellent value for money

The BC70 stand-up aid is recommended as an entry-level model and alternative to the R2D2 stand-up aid. It features a minimalist design but retains all the basic functions of the R2D2 stand-up aid, thus offering excellent value for money.

Stand-Up Support BC70– 2 basic hights

The BC70 stand-up aid can be installed at two basic heights above your toilet and is very easy to use. The lifting effect and tilt angle allow you to easily support yourself while using the toilet, while the BC70 takes over the movement.

Preassembled delivery

Through the preassembled delivery, there is no installation effort and the device requires little space.

[/tab] [tab title=”specifications”]Stand-Up Support BC70

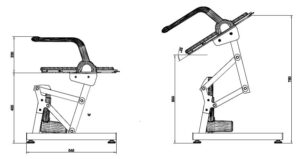

Dimensions of the BC70 stand-up aid

enigneering figures: lifting area:Max. Height: 425 – 780 mm 2 Base heights: 425 or 510 mm measures: 545 x 780 x 650 mm 2 fixes, ergonomic handles Inclination: up to 32° Connection: 230V/50 Hz, 16A Color: White Drive control: 24VDC Load: 120 Kg

[/tab] [tab title=”composition alternatives”]

BC70-TR Model

Model variant BC70-TR Switching between tilt angle and horizontal lifting action Expand your BC70 stand-up aid with the TR model variant and get the option to switch between the lifting effects with an angle of inclination and a purely horizontal lifting effect WITHOUT an angle of inclination.

Special options

Compiling your stand up support, your able to select from various additional options such as different toilet seats, toilet bowls and means of control. Ask us, we will help you!

It ist available in different versions:

• with fixed handles
• with toilet seat or bidet
• with standalone remote control
• for free-standing or wall-mounted toilets

Send us your enquiry using via service@attris.de and we will send you an offer matching your individual requirements.

Toilet seat without lid

vebra air bidet

against splash water

standalone remote control

[/tab]

[tab title=”download”]Download Section

Brochures, instuction sheets, operating manuals, texts for invitation to tender – to download

To install Acrobat Reader please click here

bc70_Informations
