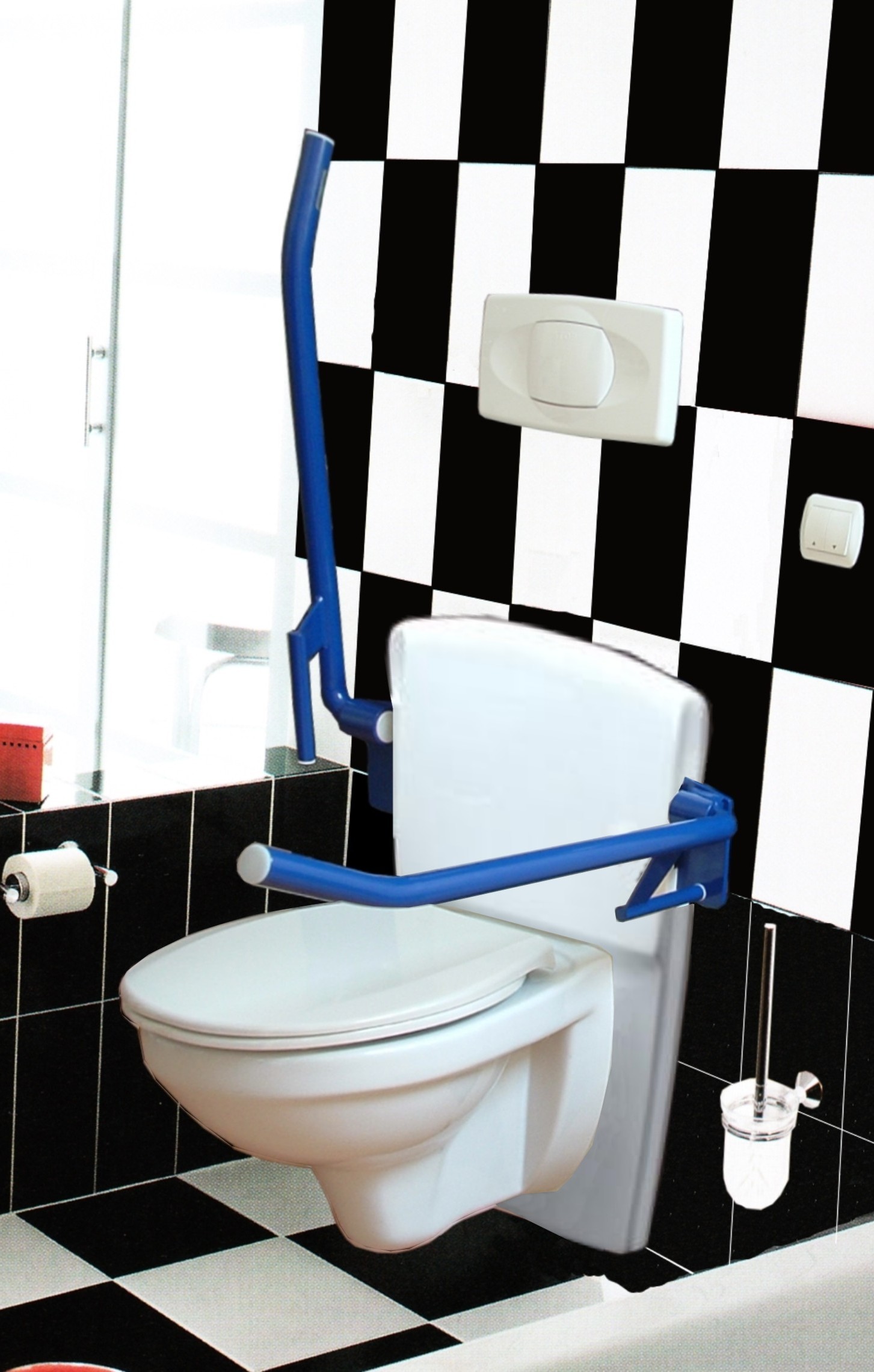

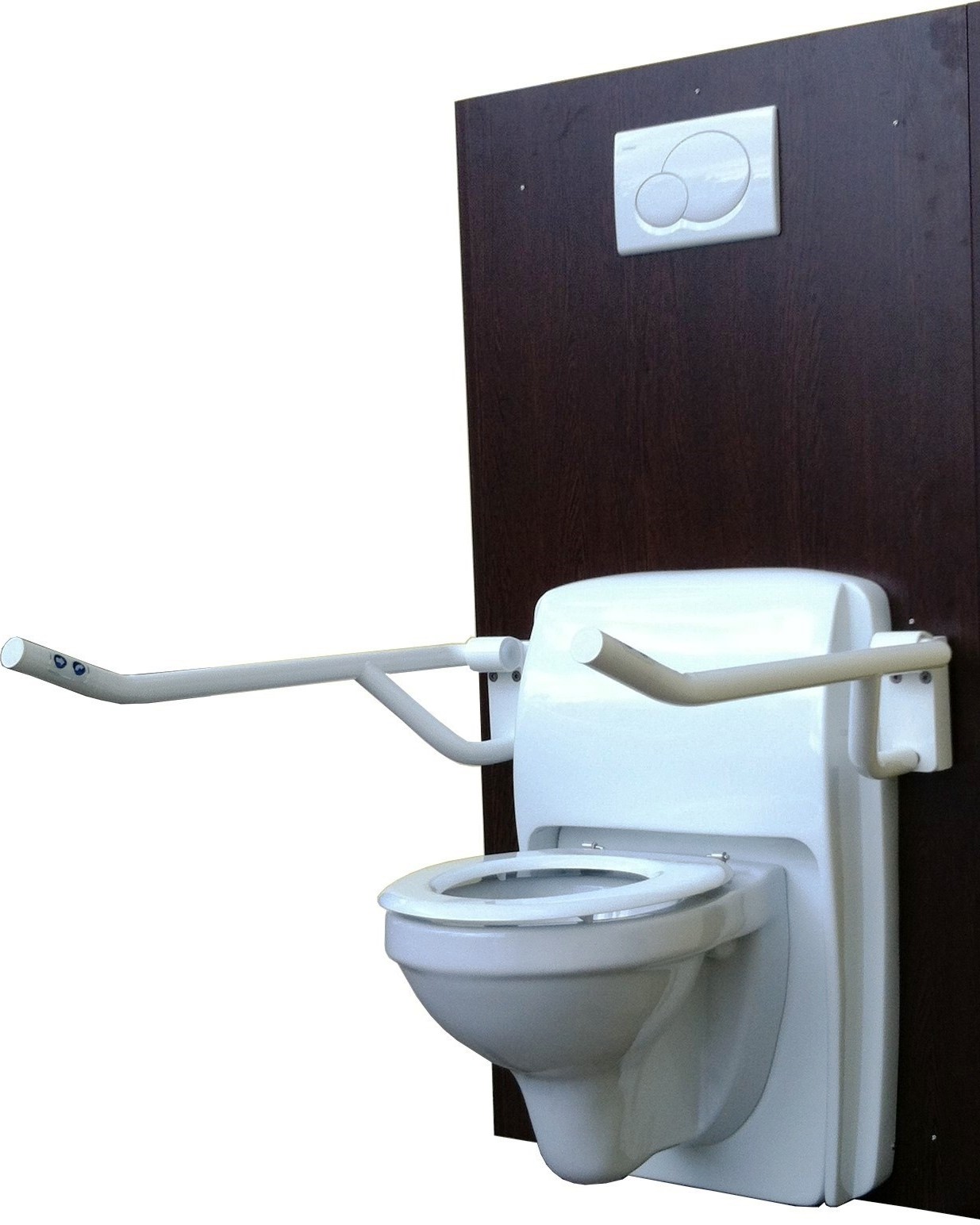

Lift toilet Care

Electrically adjustable and accessible lift toilet with movable handles

Fields of application

The lift toilet Care is an extension of the model ForAll. Beside the advantages of a classic lift toilet it offers an additional accessibility. By attaching spring-loaded and extremely stable movable handles with integrated control keyboard on the toilet, the visit to the bathroom can be realized without further help.

Suitable for:

Persons with difficulties in using a standard toilet
Persons with limited mobility
Disabled persons

Fields of application:

Toilet lift adjustable in height (range: 350 mm)
Accessible use of the toilet supported by movable handles
Comfortable stand up support

Control of the lift toilet Care:

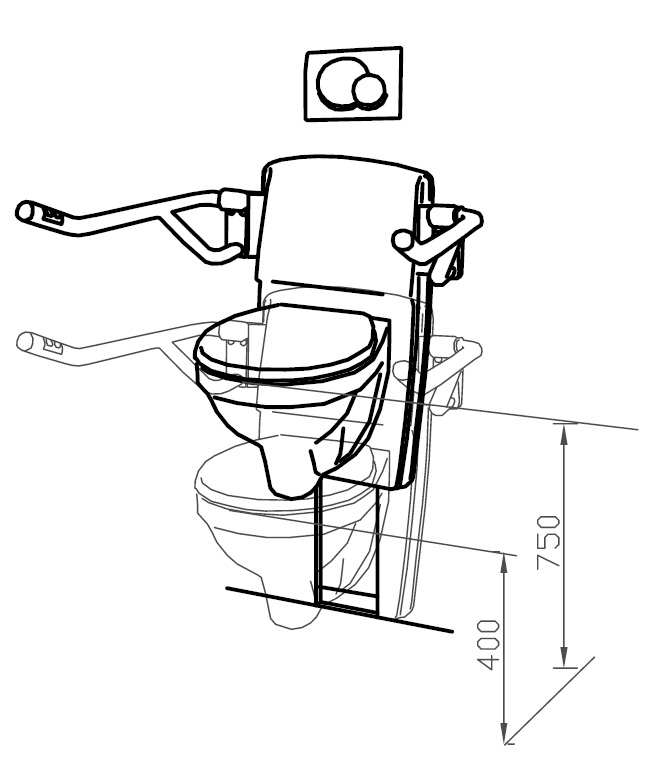

The lift toilet Care can be electrically adjusted in height in a range of 400 mm to 750 mm.

Control options:

Wall switch
Handle integrated control keyboard
if desired push buttons for flushing and alert
additional remote control is available
optional infrared sensor (integrated in wall switch for automatic flush)

Design & integration:

The lift toilet Care can be installed easily in any sanitary facilities:

Flush-mounting
Suitable for standard toilets as well as washlets and bidets
high-quality materials for an elegant, timeless look
easy maintenance and cleaning due to user-friendly, smooth surfaces

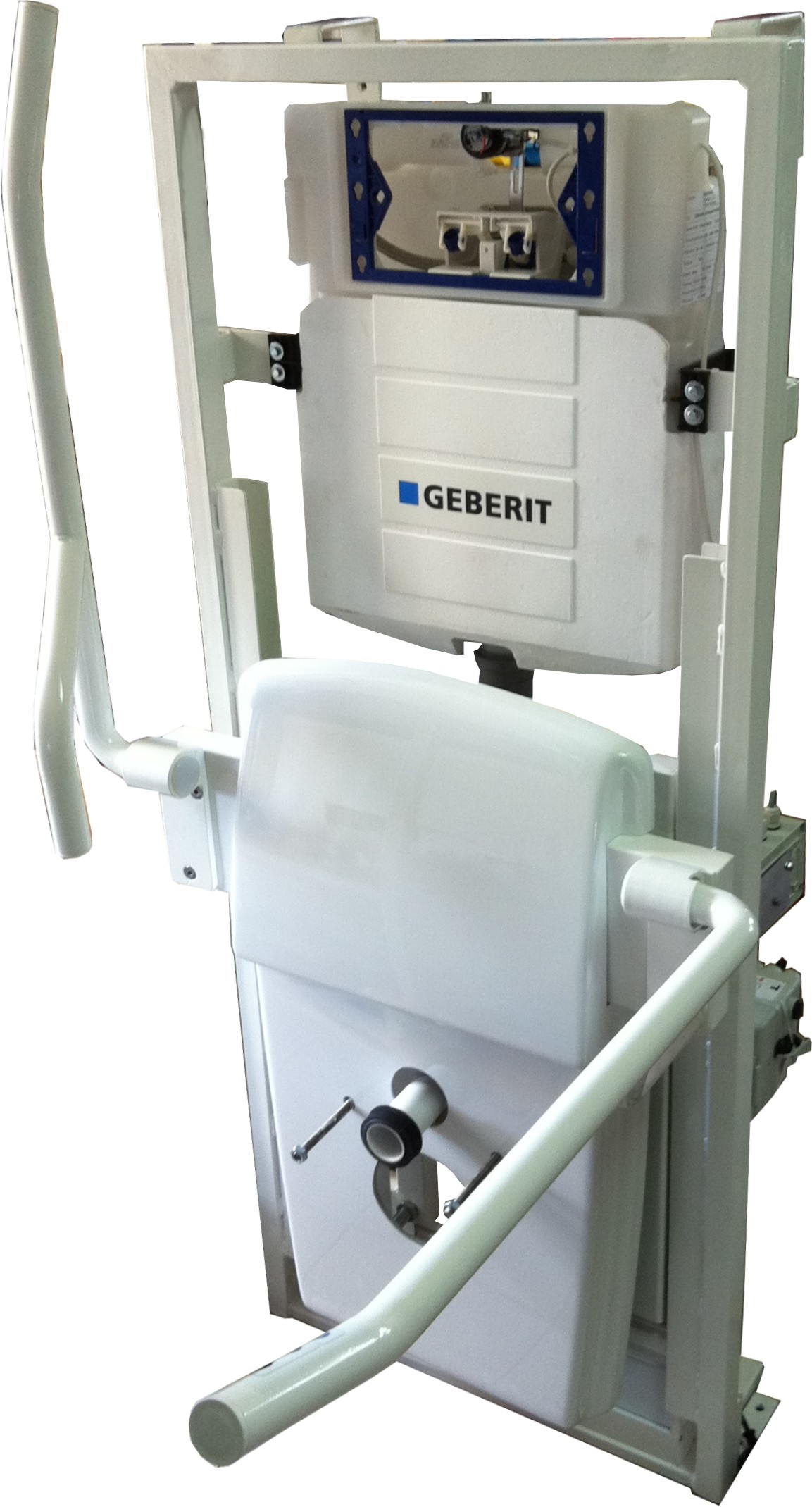

Flush-mounting – lift toilet Care

In-wall frame consisting of:

Galvanized steel profiles
Integrated in-wall cistern UP 320 Geberit
Flush plate (Color: White)
Drain set
Plastic cover (Color: White)
Electric unit
Wall switch for height adjustment
Multifunctional movable handles
Handle integrated controls (up, down, optional flushing and alarm)

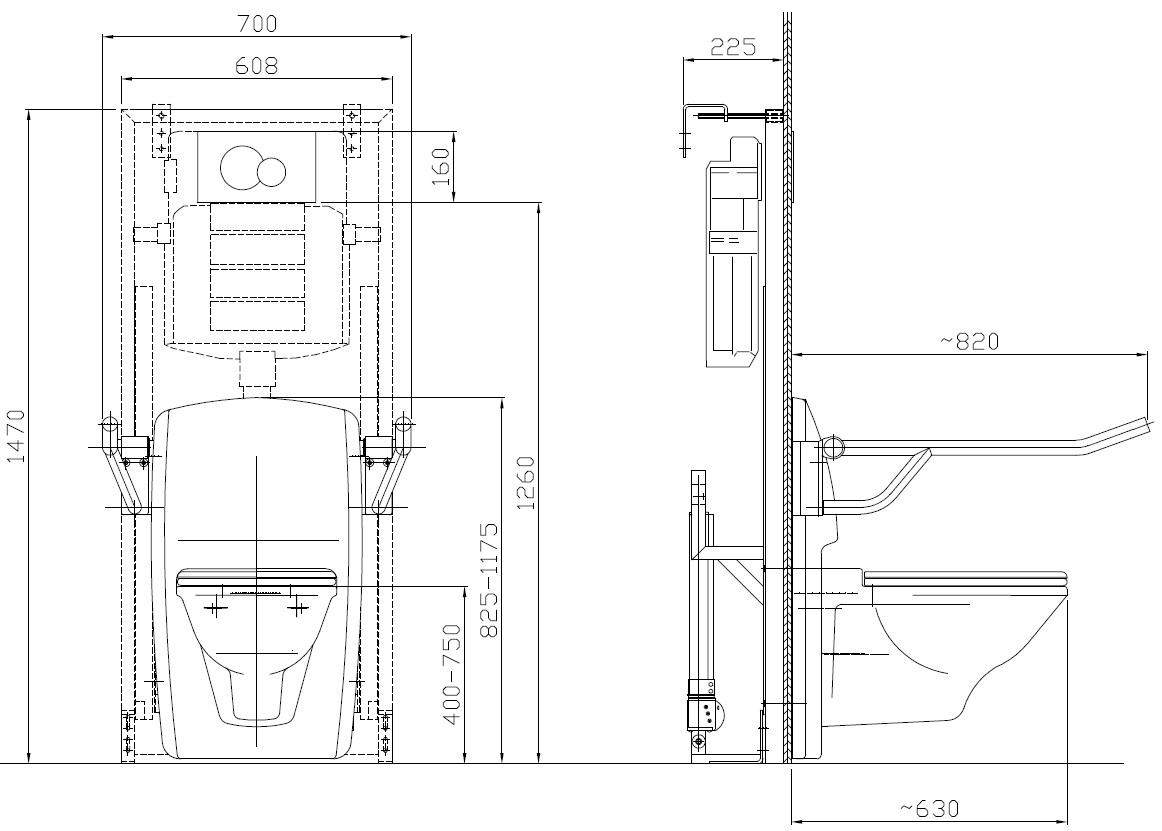

Technical specifications:

Dimensions: 1470 x 608 mm
Height adjustment: 400-750 mm
Drain DN100
Power supply 230V / 50Hz 16A
Water connection G 1/2″
Angle valves 10/ G 3/8″
Drive control 24V DC

Configuration Options for lift toilet Care

The lift toilet Care can be configured as desired. For the flush-mounted element, you can choose between different handles, controls, seats and toilet bowls.
