Product benefits
Flush-mounted lift basin

  • Invisible in-wall-mounting
  • Capable of being integrated into every bathroom and sanitary facility.
  • Adaptable to washbasin, cabinets, mirrors, lighting, etc.
  • Electrically variable height adjustment (range: 350 mm)
  • Variable controlled by wall-switch or handle integrated keyboard (with protective foil)
  • On request, a special shaped basin is available primarily for wheelchair users
  • Additional accessible, ergonomically folding handles
  • Additional remote control available
  • handles available in every RAL color
  • Drain-Kit
  • Electric unit
  • Safe low voltage 24 V technology
  • Easy cleaning and maintenance

generalspecificationscomposition alternativesdownloadrequest

Lift basin flush-mounted

Electrically adjustable flush-mounted washbasin

Lift Waschtisch Unterputz - Integration im BadLift Waschtisch Unterputz - Konstruktion

Lift Basin – fields of application

This lift basin is electrically stepless adjustable and mechanically tiltable unit with multifunctional, spring-loaded folding handles. By flush mounting the main element will be invisible set into the wall and plastered – ideal for remodeling, bathroom renovation and refurbishment.

Lift basin flush mounting – advantage individual use

The flexible in-wall element allows the variable configuration of your basin unit – it will adapt to any bathroom furniture and accessories as sink, mirror, lighting and low- and side boards. So you can put together your personalized lift basin!

Suitable for:

  • Wheelchair users
  • People with limited mobility
  • Children and seniors

The lift basin can be configured to be fully accessible by wheelchair user through its special shape. Wheelchair users can reach the basin tap comfortably and easily place their arms on the basin.

Control of the lift basin:

As required our flush-mounted lift basin can be electrically infinitely variable adjusted from 650 mm to 1000 mm in height.

Control options:

  • Wall switch and/or
  • Handle-integrated keyboard (with protective foil)
  • Remote control

Integration & design:

The flush-mounted lift basin can be ”invisible” integrated in any sanitary facility and through its customizable design it fits harmoniously with the bathroom installations:

  • Invisible flush mounting
  • Customizable design according to your conception
  • High-quality materials for an elegant, timeless look
  • Easy cleaning and maintenance through user-friendly and smooth surfaces

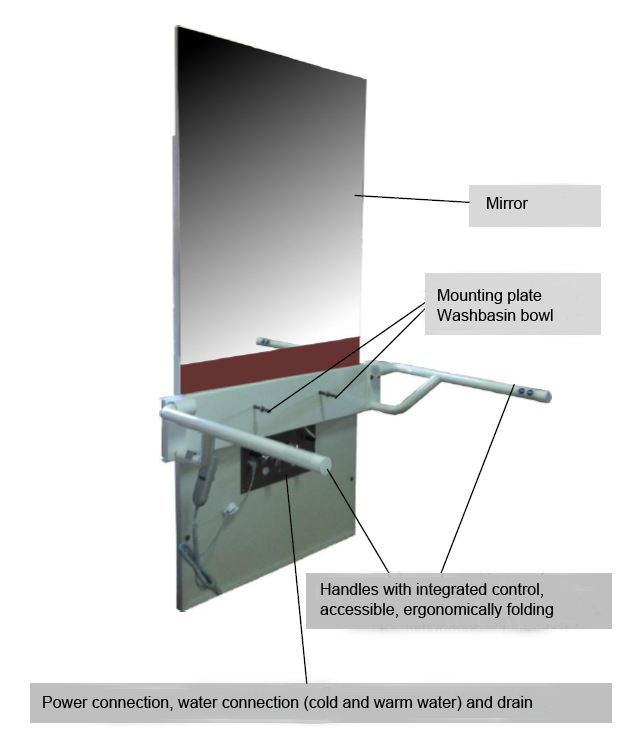

Lift basin flush-mounted – construction

Lift Waschtisch Unterputz - Höhenverstellung

Lift washbasin - flush-mounted

Element consists of:

  • Galvanized steel profiles
  • Wall switch for stroke movement
  • Integrated drain-kit
  • Integrated electronic unit
  • Fastening elements for wall and floor
  • Mirror
Technical Specifications:

  • Dimensions: 1400 x 600 mm
  • Height adjustment: 650 – 1000 mm
  • Drain: DN32
  • Power connection: 16A 230V50Hz
  • Water connection: G1/2″
  • Angle valves: 10/ G3/8″

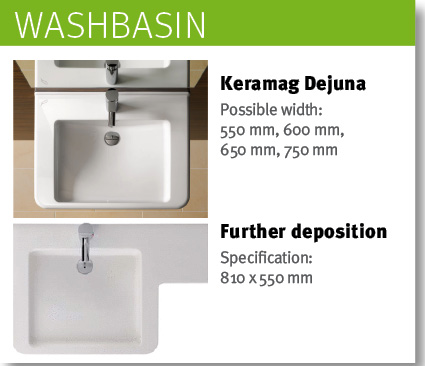

Lift basin flush-mounted – standard basin

By default in various widths, a Keramag Dejuna washbasin will be installed in the lift basin unit – alternatively with an additional placement area. On request, we build in the specially shaped basin Santis 900 – through its special shape, the basin is accessible for wheelchair user.

Of course you can also put together your own individual lift basin by installing another washbasin and vanity units etc. Under “composition alternatives” you get more information on your possibilities.


Lift Waschtisch - Santis Waschbecken 900 MaßangabenLift Waschtisch - Santis 900 Waschbecken

Waschbasin Santis 900:

  • Custom made (accessible)
  • Special shape: resting arms

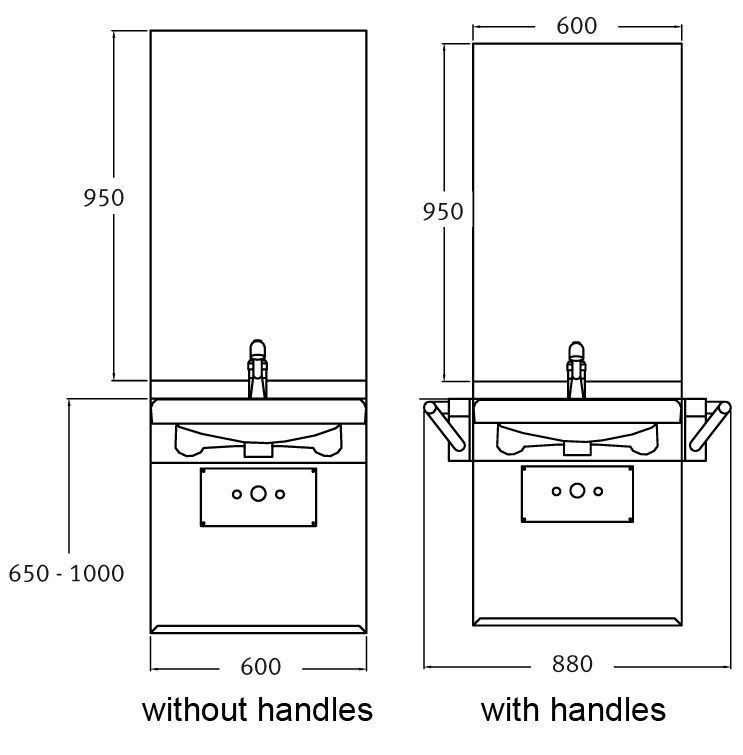

Lift basin – dimension sheet

Configuration Options

You can combine the flush-mounted lift basin according to your needs

The main element of the lift basin unit is the flush mounting element.

All other elements can be determined by you:

  • Mirror element

    • Mounted on the front-wall construction
    • With or without a mirror lighting and heating
  • Handles
    • With integrated control
    • Folded up and braked, can be locked up in every position
    • Available in all RAL colors (Handle color and color of page elements are the same)
  • Washbasin
    • Standard basin Keramag Dejuna
    • Alternatively: accessible basin Santis 900
    • On request other manufacturers are available

Weitere Möglichkeiten:

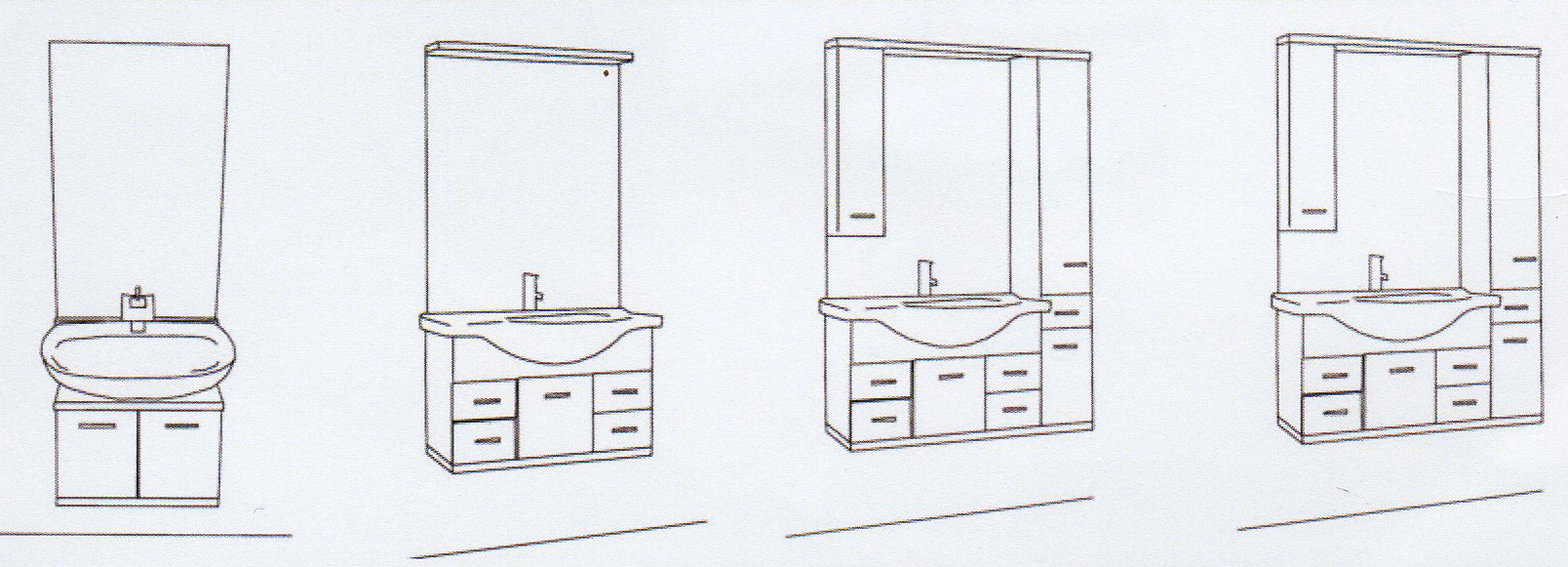

Create your individual lift basin

Washbasin, mirror, lighting, cabinets – you decide!

The flexible in-wall element allows the variable design of your washbasin unit – it will be adapted to your bathroom furniture and accessories as sink, mirror, lighting and low and side boards. So you can individually put together your flush mounted lift basin!

Lift Washbasin flush-mounted - composition alternatives

Lift Washbasin flush-mounted – composition alternatives

With our request form you can put together your personalized lift basin. You will receive a non-binding offer that has been configured according to your individual specifications.

Download section Lift basin flush-mounted

Brochures, instruction sheets, operating manuals, texts for invitation to tender – to download

To install Acrobat Reader please click here

Informations lift basin_flush-mounting
