Stand up support R2D2

Comfort and reliability, self-contained through everyday life

Supportive device for people whose mobility is reduced due to physical disabilities or as a result of age.

Government-funded:
Apply for a reimbursement of the Stand-Up Support.

Aid No. in Germany: 33.40.03.1004

Electrical Adjustment in height and inclination

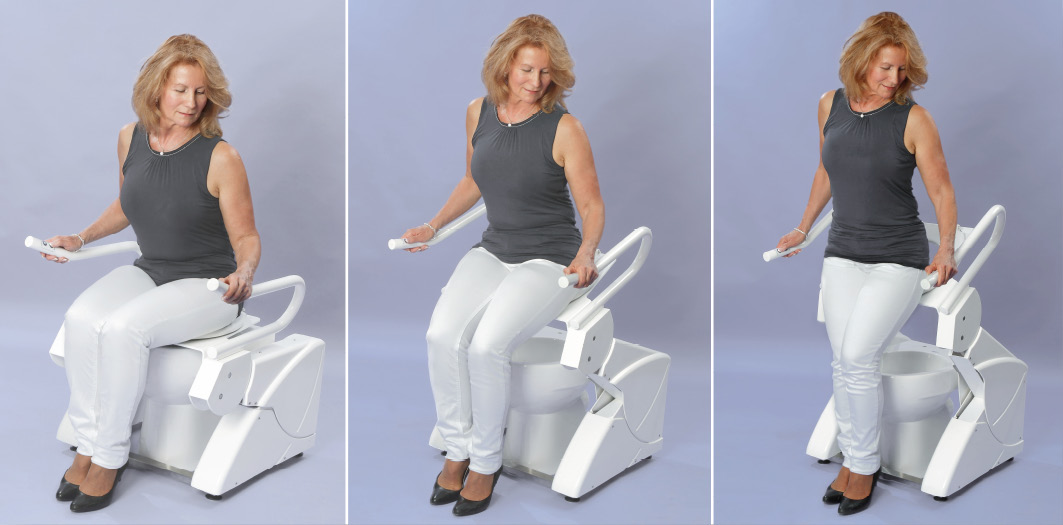

Bewegungsablauf

Sit-Down and Stand-Up Supports ease the visit to the bathroom

The Device R2D2 is a support frame for the toilet that makes the independent use of the bathroom possible. The Stand-up Support reduces the load and relieves the joints and muscles. The infinitely variable electronic height and inclination adjustment guarantees a safe sitting down and standing up by the toilet.

R2D2-V – Stand-Up Support with vertical lifting action

The Stand-Up Support is alternatively available as Vertical lift R2D2-V. It is specially designed for wheelchair users and people who need stand up assist without any inclination angle. Therefore a vertical lifting is needed.

Developed with experts – Stand-Up Support R2D2

In collaboration with a group of experts consisting of specialists, therapists, architects and engineers, the rise function on the R2D2 was developed and coordinated. The highest level of functionality, safety and practicality is guaranteed.

Development and use in nursing

In the care sector, the Stand-Up Support provides not only relief to the patients, but also facilitates the physical strain of the nursing staff and also saves time and money.

Stand up support R2D2

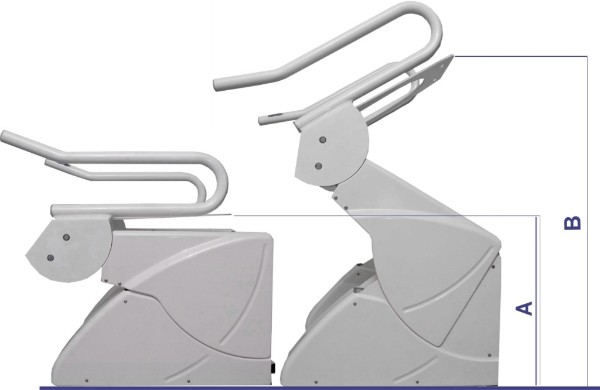

Stand-Up Support – technical details

Technical specifications:

Max. Height: 630-860 mm
A= 400/500 mm
B=860/960mm
Width x Depth:
- Fixed handles: 630 x 680 mm
- Raba handles: 740 x 680 mm

Inclination: bis 50°
Connection: 230V/50 Hz, 16A
Color: Weiß
Drive control: 24VDC
Load: 150 Kg

Vertical lift R2D2-V

Stand-Up Support Vertical Lift – technical details

Technical specifications:

Max. Height: 680-770 mm
Width x Depth:
- Fixed handles: 630 x 680 mm
- Raba handles: 740 x 680 mm

Connection: 230V/50 Hz, 16A
Color: Weiß
Drive control: 24VDC
Load: 150 Kg

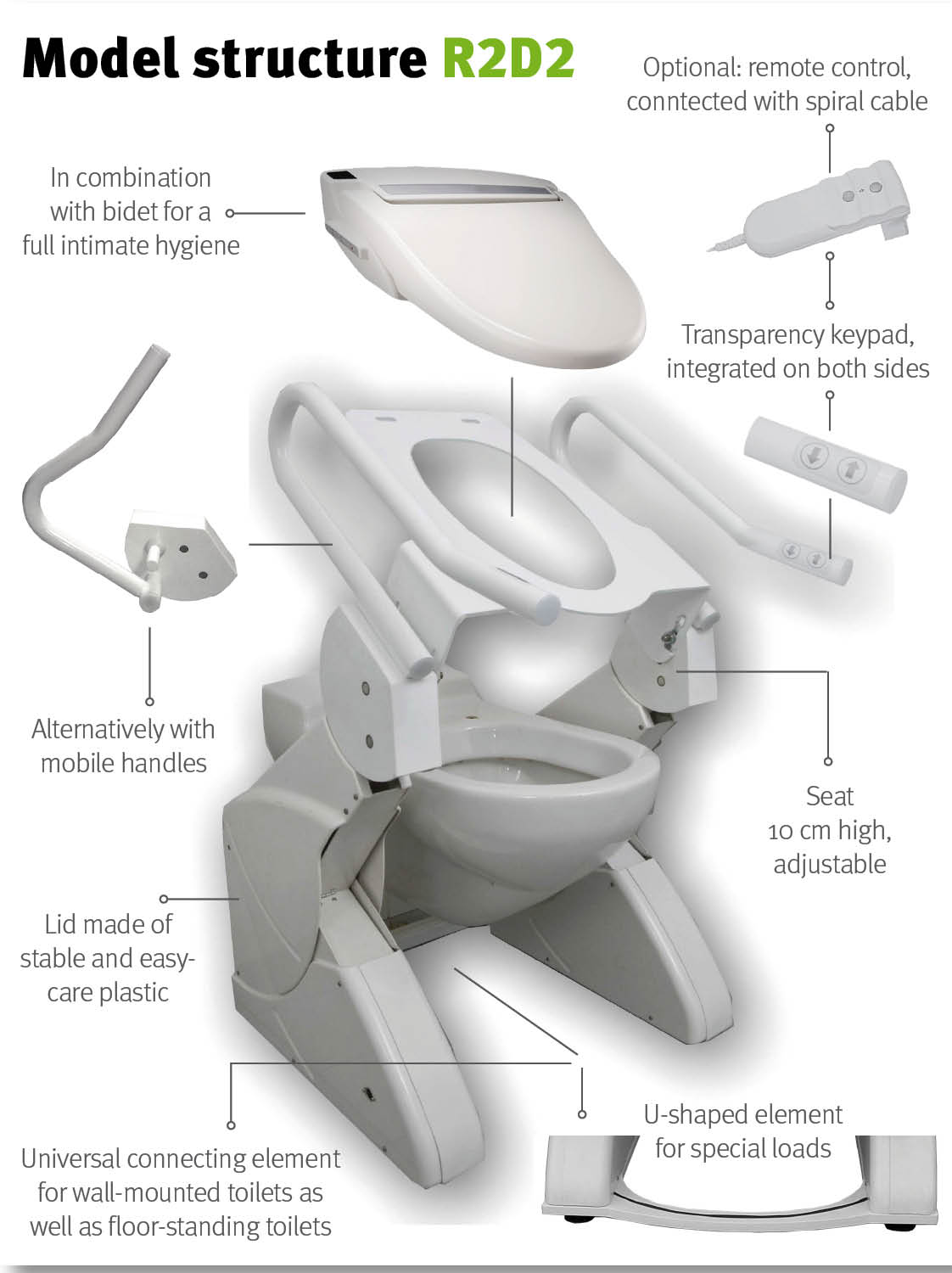

Model stucture R2D2

Individual productions depending on the circumstances and location

Depending on your wishes and conditions of the area the Stand-Up Support can be configured in the way that it is optimally adapted to the needs of each individual user.

It is available in different versions:

with fixed or swiveling handles
with toilet seat or bidet
handle-integrated control and/or standalone remote control
for free-standing or wall-mounted toilets
complete custom-made product

Send us your enquiry using the request form and we will send you an offer matching your individual requirements.

Configuration Options

Stand-Up Support and Vertical lift with different handle variations

Stand-Up Support R2D2 and R2D2-V with handles

Stand-Up Support R2D2-Raba and R2D2-V-Raba with movable handles

Custom made products

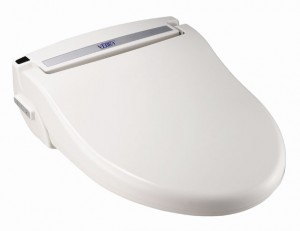

Stand-Up Support and Vertical lift with bidet or for high loads

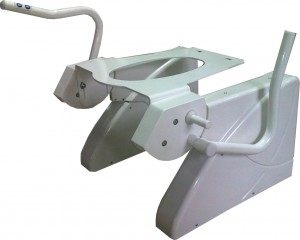

Stand-Up Support R2D2-HD and RR2D2-V-HD; HD = Heavy Duty, up to 250 kg

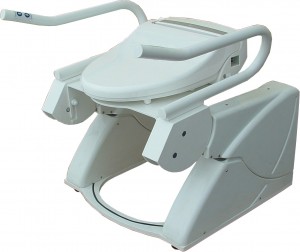

Stand-Up Support R2D2 imd R2D2-V with u-plate and bidet

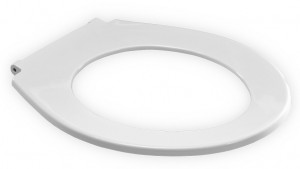

Special options

Compile your stand up support, your able to select from various additional options such as different toilet seats, toilet bowls and means of control!
